NEW EZZY CHEETAH

01/09/2017
by
Category

Ezzy release details of their new Cheetah – and the good news is – no price increase!

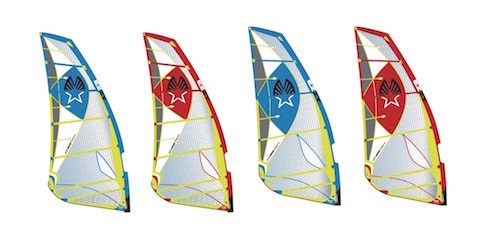

colors cheetah 2018 FINAL 2

“At Ezzy, we make two dedicated flatwater sails, the Lion and Cheetah. The performance goals are the same for both–power, speed, and control—but each sail achieves them using different shaping methods.PRI_0724

You would be forgiven for thinking that the Cheetah also has cams, but the Cheetah’s deep, forward profile actually comes from the broadseaming sewn into the panels. This means that shape is “baked” into the sail when it is sewn together (think molded sail).PRI_0626

The advantage to shape made by broadseaming is a more stable and locked-in draft. The broadseaming gives the Cheetah deep shape like a cam would, but because it does not have cams, the Cheetah flips and maneuvers easily during gybes and water starts.PRI_0674

Why use x-ply in both the Cheetah. David Ezzy wants to make sails that last forever. David Ezzy developed Dyneema X-ply that weighs the same as monofilm but has more than double the UV strength and lasts years longer. You might also notice that the Cheetah doesn’t have cut-ins above the clew. David says a leech cut-in kills the low-end and stability of a sail. The more the lower leech moves, the more unstable the sail is. He wants an increasing tension from the head to the clew. Cutting the leech disturbs this important tension progression.PRI_0668

For 2017, the Cheetah features a new luff sleeve construction that gets planing sooner and feels more responsive. Also new is the scrim luff panel on the Cheetah that makes the sail more forgiving and easier to handle, especially in gusty winds.PRI_0649

2018
Cheetah Luff Luff Boom Boom Suggested med No. of
Size (sq.m.) Min Max Min Max Mast Extension Battens
5.5 435 437 172 180 430/25/21 6 cm 6
6.0 441 443 178 187 430/25/21 12 cm 6
6.5 453 455 188 196 430/25/21 24 cm 6
7.0 465 467 194 203 460/25/25 6 cm 6
7.5 476 478 202 210 460/25/25 18 cm 7
8.0 485 487 212 220 460/25/25 26 cm 7
8.5 500 502 217 226 490/26/29 12 cm 7
9.5 512 514 235 245 490/26/29 24 cm 7


www.ezzy.com

UK distributors – www.seaspritesports.com
